Architectural Branding Techniques for Sheet Metal Panels

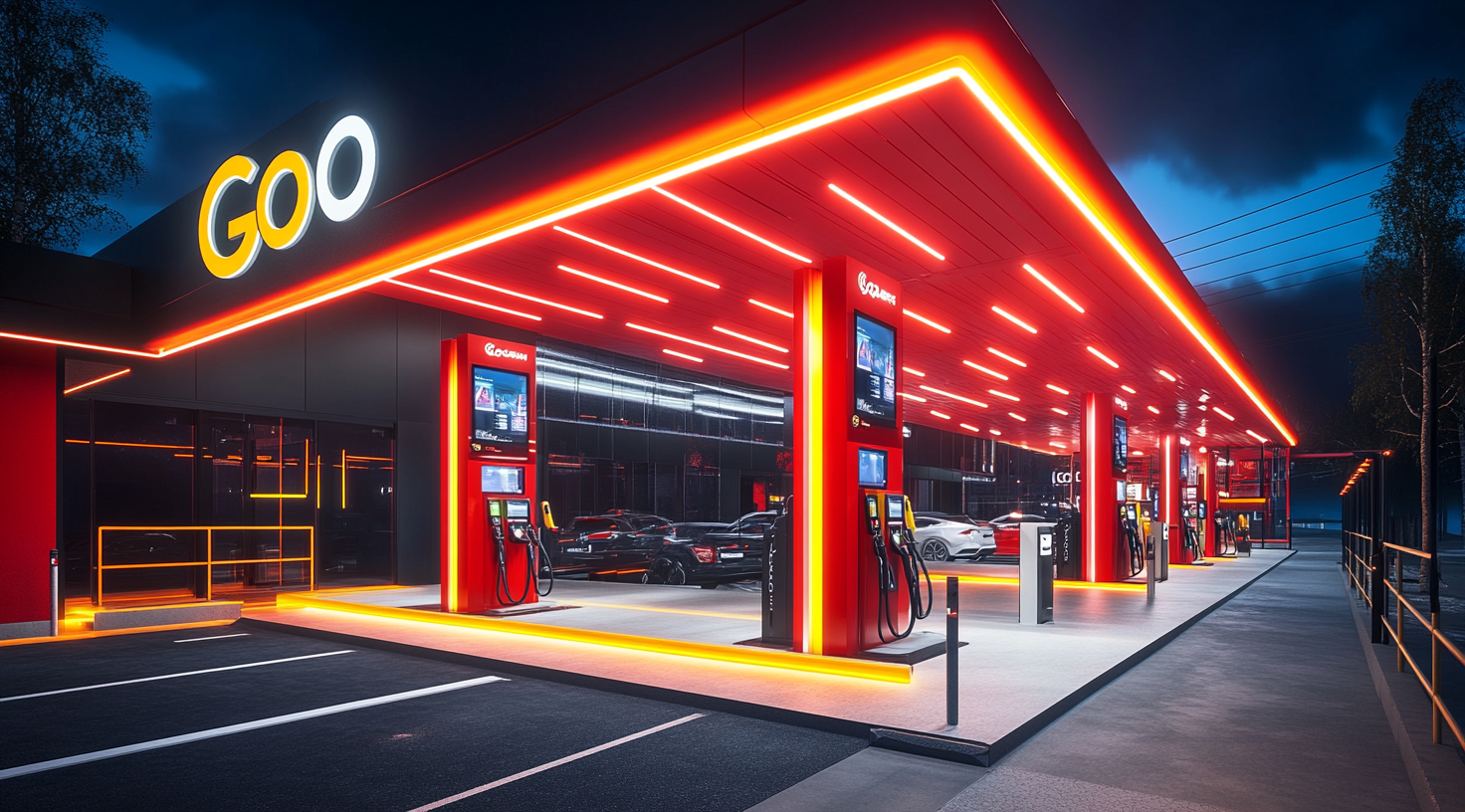

Branding sheet metal panels on building façades, ceilings, or fences allows companies to integrate logos, patterns, and corporate colors directly into architectural surfaces. This means a metal façade or fence not only protects the building, but also communicates a brand’s identity. By using specialized architectural branding techniques – such as engraving, printing, or custom painting – designers can make panels both decorative and distinctive. These methods add visual appeal and make each project unique.

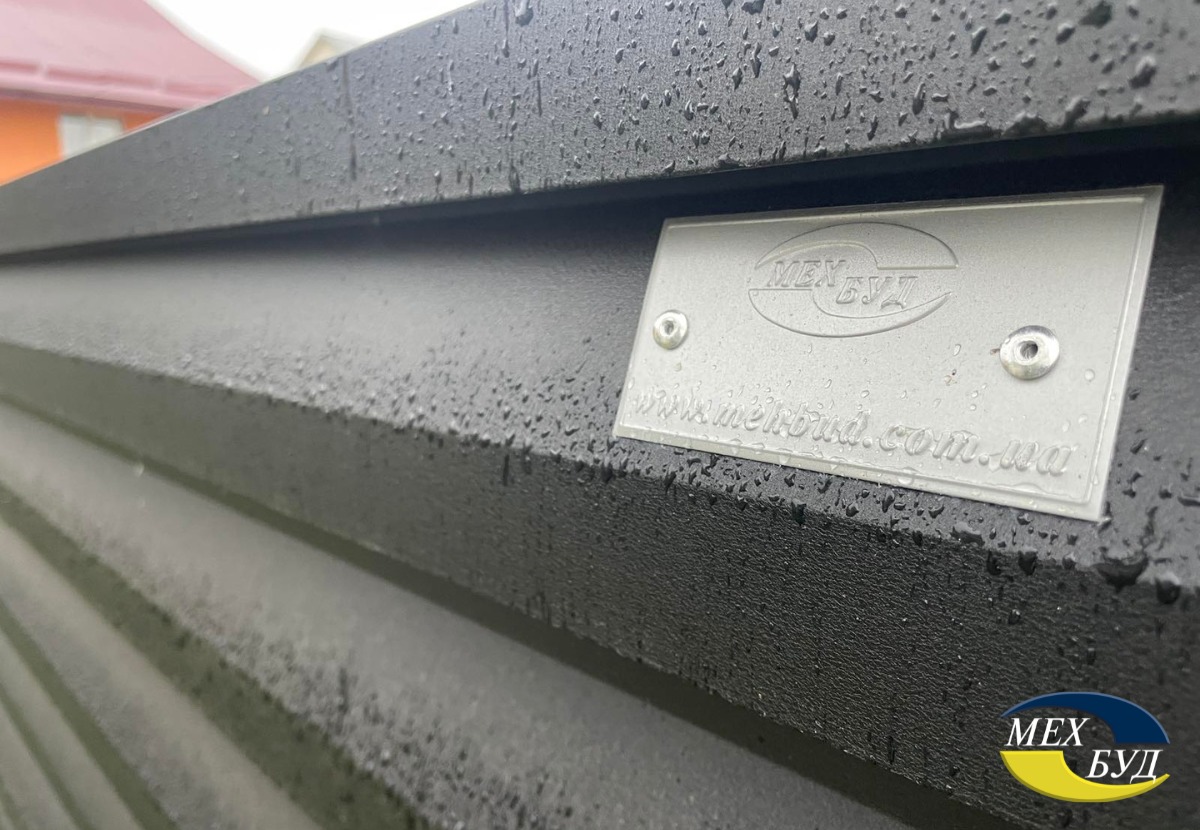

In addition to aesthetics, branded panels can include functional elements. For example, laser-engraved serial numbers, QR codes, or micro-text can be added for traceability and anti-counterfeiting. Such hidden markings turn each panel into a verifiable component of the building, ensuring authenticity and aiding quality control. In practice, architects often combine visible logos with these security features to maximize both marketing and functional value.

Branding Sheet Metal Panels: Laser Engraving and CNC Etching

Laser engraving and etching use focused beams to mark the metal surface. High-power lasers can either ablate (engrave) or anneal (mark without removing material) the metal. On stainless steel, laser annealing creates a permanent, high-contrast black mark by controlled oxidation, without removing the protective chromium-oxide layer. True engraving, however, physically removes metal. As Laserax notes, removing the oxide layer on stainless steel leads to corrosion (rust) over time. After marking, any paint or powder finish is cut through, exposing the base metal; panels typically require touch-up coating on the marked areas.

1. Durability: Laser- and CNC-engraved marks are generally long-lasting. If applied to bare metal or properly recoated, the graphics survive decades of weather. Zahner confirms that etched/engraved details remain “sharp” and durable on panel surfaces. However, if the protective coating is removed, corrosion can occur unless re-sealed.
2. Aesthetics: Produces very fine, crisp graphics and text. Contrast is high (e.g. black on metal) and detail is precise. Laser annealing on steel yields a striking dark logo, while on coated panels the engraved area reveals the under-layer (primer or raw metal), creating a distinct two-tone effect.
3. Cost: Laser and CNC machines are expensive, so marking is most cost-effective for medium-to-large production runs. For custom one-offs, setup and machine time make the price per panel higher.
4. Coating Compatibility: Engraving cuts through any coatings. After marking, the exposed base metal should be primed or repainted. Some projects engrave bare panels and then powder-coat them, so the entire panel (including the logo area) gets a new finish.
5. Use Cases: Ideal for serial codes, batch numbers, detailed logos, or small text on panels. Laser marking is widely used for anti-counterfeit IDs and traceability on metal parts. CNC engraving (mechanical) can similarly carve deep relief logos or patterns into thicker architectural elements.

UV and Screen Printing for Custom Metal Panel Design

UV printing and screen printing apply ink graphics onto metal panels. Large flatbed UV printers can print photographs or artwork directly onto coated panels. Screen printing pushes ink through fine mesh stencils, one for each color, building up multi-color graphics. These techniques allow truly custom metal panel design – any image or logo can be reproduced in full color on the panel surface.

1. Durability: Both methods can be very durable, especially when printed onto a primed or powder-coated base. UV-cured inks resist scratching, fading, and weather; combining UV printing with powder coating offers a long-lasting finish. Screen-print inks bond strongly to metals and survive harsh outdoor conditions. Usually, a clear overcoat is applied to protect the printed image.
2. Aesthetics: Excellent for vibrant, multi-color logos and images. Screen printing yields bold, solid-color graphics, while UV printing achieves high-resolution detail and gradients. This enables photo-realistic designs or full-spectrum brand artwork on façades, ceilings, or fences.
3. Cost: UV printing requires expensive equipment but allows one-off and custom runs with no design setup. Screen printing is cheaper per piece for large runs of the same design, but each color change needs new screens.
4. Coating Compatibility: Panels are normally coated (powder or paint) in a neutral base color first. Inks must adhere to that coating. For example, a white primer coat is common so printed colors appear true. After printing, a clear UV-curable varnish is often used for extra protection.
5. Use Cases: Best for detailed, colorful logos or murals on large panels. A retailer’s multicolor logo can be UV-printed on exterior cladding. Offices or restaurants might use screen-printed branding on metal interior partitions or ceilings.

Powder Coating with Stencils and Masking

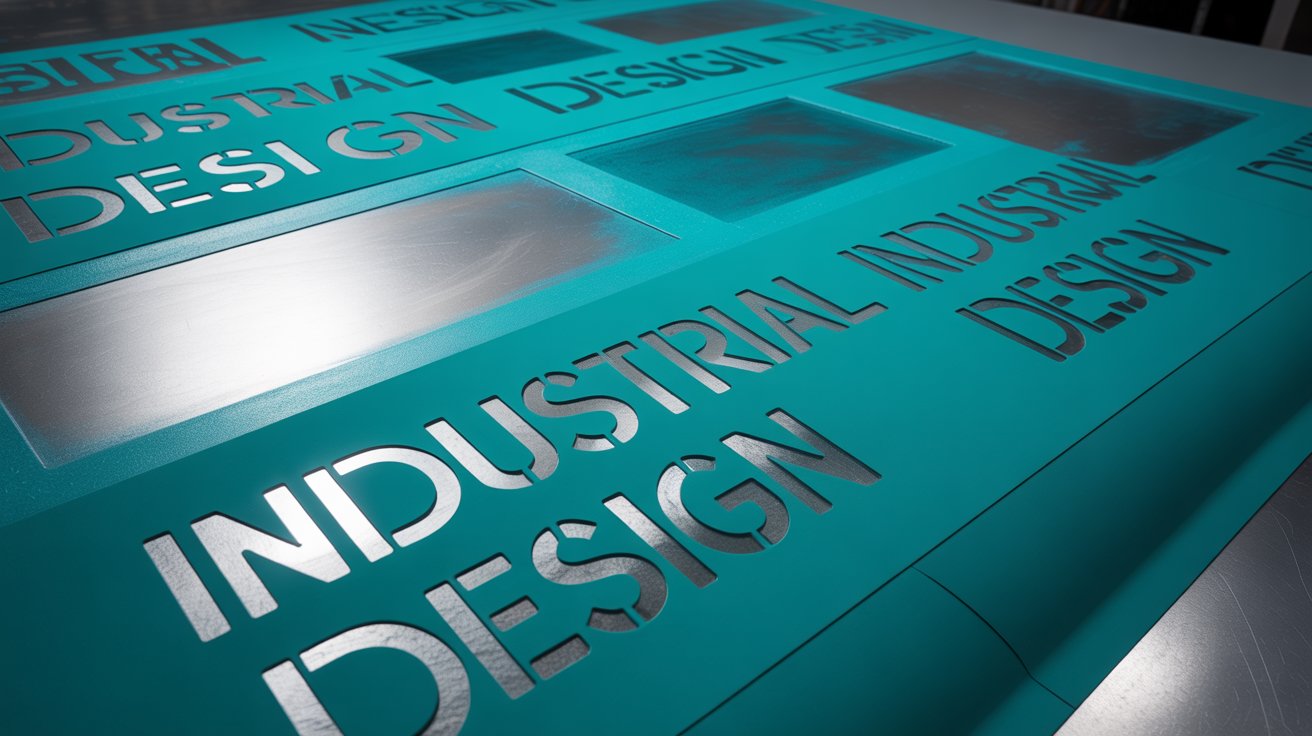

Powder coating can itself incorporate branding when used with masks. In this process, custom vinyl or metal masks cover logo shapes on the panel. After applying a base coat and curing, the mask is removed to reveal the design in the underlying metal (or a second color can be applied).

1. Durability: Very high. Powder coatings typically carry 15+ year warranties and resist UV, moisture, and abrasion. A logo created via masking becomes part of this durable finish, with no additional layers to peel or fade.
2. Aesthetics: Creates sharp, crisp designs in solid colors. Logo edges are well-defined. However, only solid shapes work – complex images cannot be rendered. Any brand color can be chosen – manufacturers note metal panels can be “coated in virtually any color”, so logos match brand palettes exactly.
3. Cost: Moderate. Masks add labor cost, but the powder itself is inexpensive. It is cost-effective for simple, single-color logos. Complex multi-step masks (for multiple colors) add time and expense.
4. Coating Compatibility: Works on any powder-coatable metal (aluminum, galvanized steel, etc.). The process is done before or after panel bending. No special treatment is needed other than standard powder-coating preparation.
5. Use Cases: Ideal for logo panels on fences or cladding where the design is one solid color against the panel color. For example, a company name or icon can be masked and revealed when the panel is powder-coated.

Embossing and Debossing Techniques

Embossing (raising) and debossing (recessing) physically texture the metal sheet. The panel passes through patterned rollers or presses, imparting a 3D design into the metal itself.

1. Durability: The pattern is integral to the metal, so it will never wear off. After forming, panels are usually coated or painted, but the embossed design remains permanently.
2. Aesthetics: Adds depth and texture. Panels take on a sculptural quality. For branding, a subtle repeated logo or a raised pattern can appear across the surface. Zahner notes that embossing creates “unique textures” and even adds stiffness to the panel. Light and shadow on embossing can enhance a premium look.
3. Cost: High. Custom embossing rollers or dies are needed for each pattern, making it practical mainly for large production or full-panel patterns.
4. Coating Compatibility: Done on bare coil before panel fabrication. After embossing and cutting, the panel is then coated (powder or paint). Works particularly well on aluminum. The result is a textured panel ready for finishing.
5. Use Cases: Common in architectural facades and ceilings. While not typically used for precise logos (unless a custom die is made), embossing can incorporate branded motifs in abstract form. It also helps reduce panel warping (“oil-canning”) by stiffening the metal.

Perforation and Laser Cutting for Logos and Patterns

Perforation and laser cutting remove parts of the panel to form a logo or design. For example, a company’s logo can be cut out so that the background shows through – effectively placing the logo on the metal façade itself. This makes the branding part of the building skin.

1. Durability: Depends on the base material. After cutting, all edges should be treated (e.g. primed or painted) to prevent corrosion. If panels are cut first and then coated, any chipping at holes must be sealed.
2. Aesthetics: Very bold. A cut-out logo can be backlit or displayed against a contrasting backdrop. Perforated patterns create dynamic screens. Using negative space for the logo is a dramatic architectural statement.
3. Cost: Simple perforation patterns (uniform hole arrays) can be punched efficiently. Cutting detailed logos or large cut-outs requires CNC or laser, which is slower and more costly per unit.
4. Coating Compatibility: Panels may be cut from raw sheet and then finished. If coated first, the cutting will expose the base metal color in the logo area. In any event, a final clear coat on the edges is advisable.
5. Use Cases: Popular for modern corporate facades and public buildings. For instance, a company’s name or icon might be laser-cut into a perimeter wall or screen, combining branding with function (ventilation or lighting).


Benefits of Branded Metal Panels in Architecture

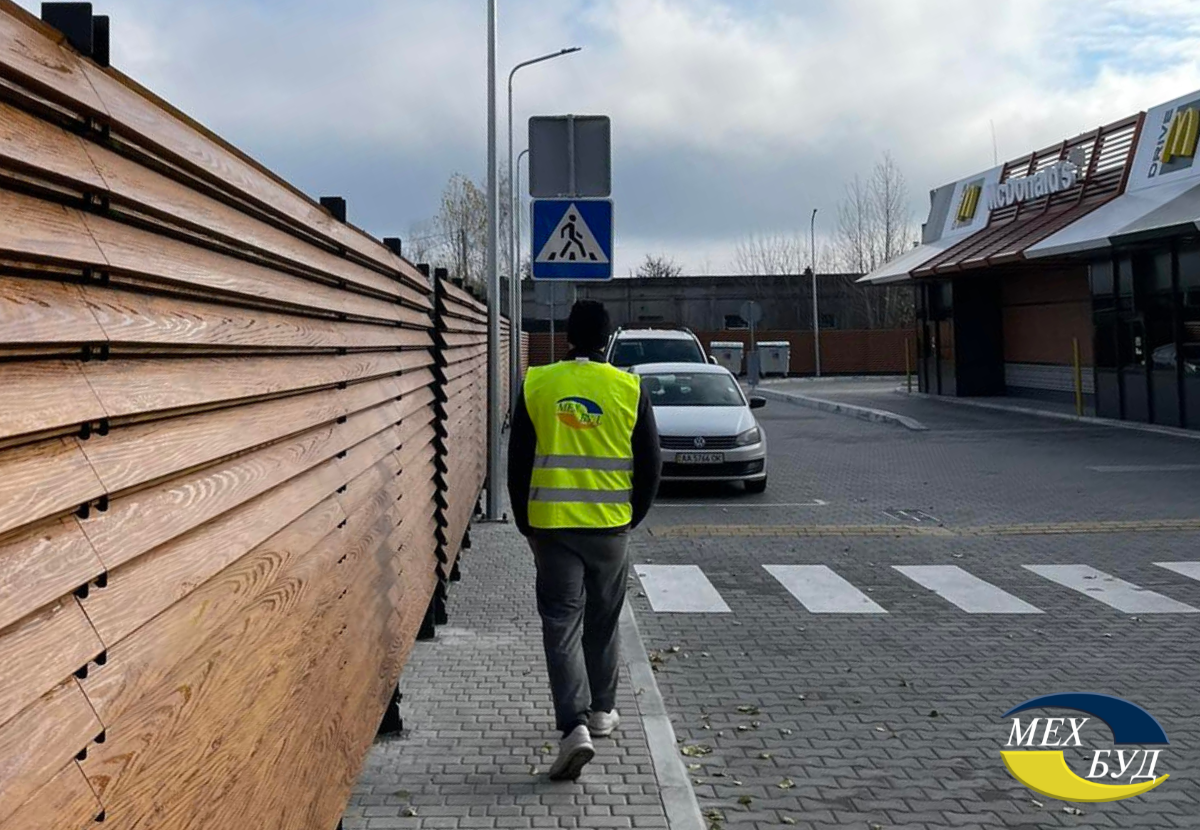

Using branded sheet metal panels reinforces a building’s identity. Consistent use of brand colors and logos on a structure serves as constant brand exposure and can “cement the brand in people’s minds”. Branded façades and fences create unique, memorable projects. For example, Mehbud supplied a custom fence for a McDonald’s restaurant, illustrating how even a boundary element can carry a well-known logo and reinforce brand presence.

Each branding method involves trade-offs: engraving offers precision but may require re-coating, printing adds vibrant color but needs protective inks, and embossing demands special tooling. The choice depends on the project’s aesthetic goals, durability needs, and budget. In all cases, selecting high-quality protective coatings (PVDF paint, powder, or galvanizing) ensures that the branded graphics remain vibrant and corrosion-free for decades.

Mehbud’s own products exemplify these techniques. Their façade systems page showcases ventilated facade panels (customizable in color and finish) and their fencing solutions page features modern metal fences. See Mehbud’s Completed Projects section for case studies using custom panels.

In summary, a range of architectural branding techniques can be applied to metal panels. Laser/CNC etching provides crisp logos, UV/screen printing adds full-color graphics, masked powder coating yields durable logos, and embossing or perforation creates texture and depth. Properly applied, these methods make branded sheet metal panels both durable and eye-catching, merging architectural function with brand marketing.
