TOP-5 Methods of Fastening Louvers: Hidden vs. Visible Mounting — Pros and Cons for Fences and Facade Blinds

Introduction to the Architectural Evolution of Enclosing and Facade Structures

Modern architecture and engineering of civil and commercial facilities are undergoing an era of profound transformation, where the focus is shifting from massive, solid, and static surfaces to ventilated, spatial, and dynamic solutions. In this context, louver systems, which evolved from simple interior sun protection elements to complex exterior architectural forms, have gained unprecedented popularity. Historically, louvers have long ceased to be exclusively an office option for covering window openings from the inside, successfully replacing ordinary curtains in the interiors of modern homes. However, their transition to building facades and transformation into full-fledged fences required a radical revision of the materials base and, most importantly, approaches to the mechanics of fastening.

The use of traditional interior materials in open-space environments quickly demonstrated its inefficiency. Manufacturers and engineers faced the fact that using low-quality plastic for exterior structures is a critical mistake: under the constant influence of ultraviolet radiation, extreme temperature drops, and atmospheric moisture, plastic louvers lose their plasticizers, become extremely fragile, and break from minimal physical impact. Although plastic systems may be appropriate for rooms with high humidity due to their corrosion resistance and ease of maintenance , the external environment dictates stricter rules. That is why high-quality galvanized steel with polymer coatings and extruded aluminum have become the standard for facades and fences. These materials can withstand scorching sunlight , but they introduce new engineering challenges, the key one being the problem of fixing metal profiles to the load-bearing frame.

The durability, aesthetic integrity, acoustic comfort, and operational reliability of metal fences and facade blinds critically depend on one factor that is unobvious to the average consumer but decisive for the engineer — the chosen method of fastening the louvers. The junction of the louver with the frame post becomes the most vulnerable point of the entire system, as this is where all mechanical, aerodynamic, and thermal stresses are concentrated. The industry has developed a multitude of fastening options, which conceptually fall into two major paradigms: visible mounting and hidden mounting.

Visible mounting involves the use of hardware (self-tapping screws, screws, blind rivets) that pierce through the metal and remain visible to the observer. In contrast, hidden mounting operates with integrated locks, clip systems, guide grooves, and decorative covers, concealing any signs of mechanical intervention in the material. This report offers a deep analytical overview of the five most common methods of fastening louvers, exploring the mechanics of material interaction, the impact of thermal expansion, aerodynamic stability, and the overall economic feasibility of each technology.

Physico-Mechanical Challenges of the Exterior Environment

To fully understand the advantages and disadvantages of each fastening method, it is necessary to analyze in detail the physical processes that affect facade and fence systems of louvers during their operation. Unlike solid walls or blank corrugated board fences, louvers are permeable structures, which determines the specifics of their interaction with wind flows and thermal radiation.

The Impact of Thermal Expansion and the Need for Thermal Compensation

The most serious challenge, which defines the strategic difference between visible and hidden mounting, is the linear expansion of metal under the influence of temperature fluctuations. The problem of thermal compensation is most fundamentally studied and strictly regulated in the engineering of main and industrial pipelines, but the same physical laws of thermodynamics ruthlessly apply to architectural facade objects.

In pipeline systems, expansion joints play a critically important role in ensuring the safety and efficiency of operation, as they absorb thermal expansions and contractions caused by changes in the temperature of the working medium or ambient air. When the temperature changes, the material expands or contracts, causing powerful internal deformations. If these deformations are not controlled and compensated for, they will inevitably lead to system damage, ruptured welds, or destruction of fasteners. To solve this problem, engineers install expansion joints in strategic locations — these are flexible components that absorb temperature movement, allowing the material to expand without excessive stress on the system. In addition, sliding guides and anchors are used to control the direction of movement, restricting it to a predetermined path and preventing uncontrolled displacements. A flexible design scheme includes loops and offsets to distribute movement over a larger area, as well as variable spring supports to support the weight while ensuring mobility.

This profound engineering principle has a direct, vital extrapolation to facade and enclosing louvers. The surface temperature of a dark metal louver in climatic conditions with pronounced seasonality can fluctuate from significant sub-zero indicators in winter to over +70 degrees Celsius in summer under direct sunlight. This creates a huge temperature delta. According to the laws of physics, a long metal louver (especially an aluminum one, which has a higher coefficient of linear expansion compared to steel) will change its length by several millimeters.

If the louver is rigidly screwed with self-tapping screws on both sides to the load-bearing vertical posts (which is a classic example of visible mounting), it is deprived of space for natural linear expansion. It lacks the same expansion joints, guides, or anchors used in pipelines to absorb thermal expansions. As a result, colossal mechanical stress accumulates within the metal body. Since the ends are rigidly fixed, the only way to relieve the stress is by warping the plane of the louver itself. On long sections, this manifests as an unattractive “waviness” or deformation of the fence geometry. Furthermore, this stress is concentrated at the attachment points, leading to the loosening of the hole (the metal shaft of the screw begins to enlarge the hole in the thin metal of the louver), the tearing off of the protective polymer coating around the fastener head, and the immediate opening of a focal point for aggressive corrosion.

Conversely, advanced hidden fastening systems conceptually function precisely as architectural thermal expansion joints, imitating the operation of flexible components and guides. Thanks to a system of special grooves, clips, or combs, the louver does not have a rigid fixation along its longitudinal axis. It gains a controlled degree of freedom and can expand imperceptibly and unhindered within the base profile or lock, without deforming itself, shearing off the fasteners, or creating additional loads on the fence’s support posts.

Aerodynamic Vibrations and Acoustic Resonance

The second most significant factor is the aerodynamic interaction of the structure with the wind. Pipelines are often subjected to vibrations that can cause damage to fasteners and create a hazard to equipment integrity, for which expansion joints are also used to absorb vibrations and reduce mechanical loads. Fences and facade blinds function in similar, constantly changing dynamic conditions.

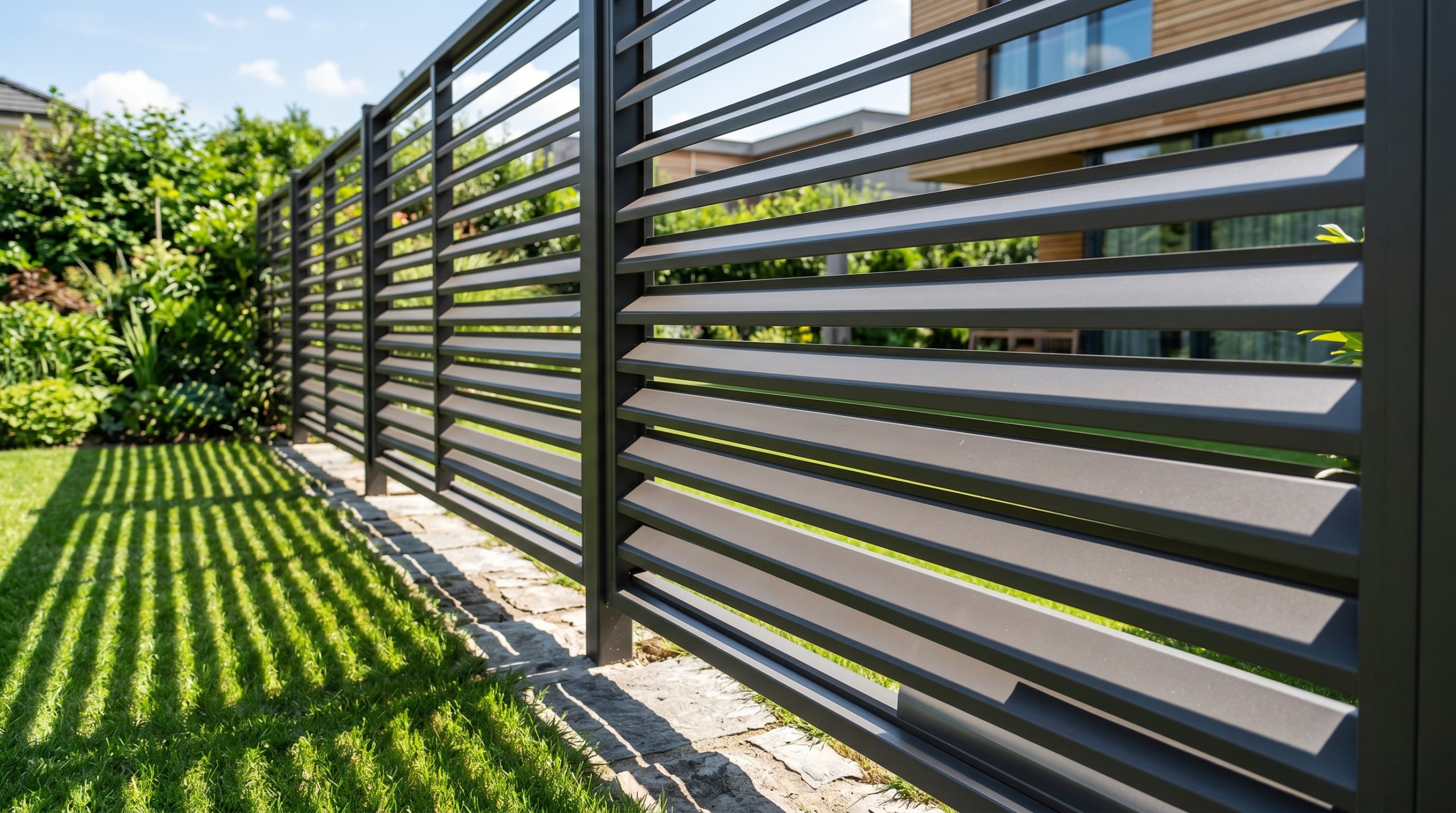

Louver fences do not form a solid wall, so they do not have a “sail” effect in the classical sense, which significantly reduces frontal pressure on the foundation. However, air masses cut at a certain angle by the installed louvers pass through narrow gaps. This process generates localized zones of turbulence and low pressure. Variable vortex flows provoke high-frequency vibration of each individual metal strip. If the fastening system does not provide sufficient rigidity of fixation (or, conversely, lacks well-thought-out elastic damping properties), the entire structure can enter a state of aerodynamic resonance.

This phenomenon is accompanied not only by accelerated metal fatigue at stress concentration points (leading to microcracks) but also creates significant acoustic discomfort for residents — humming, whistling, or annoying metallic clanking during wind gusts. Given this, the installation technology requires that each louver be installed manually, with the most accurate fitting and attention to detail to categorically avoid gaps, skews, or vibration during strong winds. If the installation is done unprofessionally, or the chosen fastening system does not match the metal thickness and span geometry, the risk of vibration clanking increases exponentially. That is why, if necessary, the installation process includes mandatory adjustment of the louver pitch or additional reinforcement of the load-bearing frame with special strips.

Energy Efficiency and Microclimate Control

When evaluating fastening methods, it is impossible to ignore the functional purpose of facade blinds in the context of microclimate management and building energy efficiency. Sun-protection facade louvers are not just an element of exterior decor; they are a powerful tool for passive energy saving that provides comfort, functionality, and an extremely long service life for the building.

Modern urbanism and architectural design face a paradoxical fact: most modern office, commercial, and even residential buildings with large glazing areas use significantly more energy to cool rooms in the summer than to heat them in the winter. Direct solar irradiation leads to catastrophic overheating of interior spaces. The use of external sun-protection systems is recognized by the global engineering community as the optimal solution to prevent overheating of both old historical buildings and new constructions. By shading the facade, the louvers take the heat impact upon themselves.

The choice of fastening system directly correlates with the efficiency of this process. There are facade blinds that offer active light regulation — their louvers, thanks to movable fastening mechanisms, allow for precise and dynamic control over the amount of sunlight entering the room throughout the day, optimizing insolation depending on the angle of incidence of the rays. In contrast, static systems, where the louvers are rigidly fixed by visible or hidden mounting at a single unchanged angle, lack this flexibility. They offer only the “no light regulation” concept, having two radical options: completely open or closed structures. To compensate for this drawback of static fastening, engineers sometimes have to use special perforated louver profiles that provide a minimal, diffused access to sunlight even when closed.

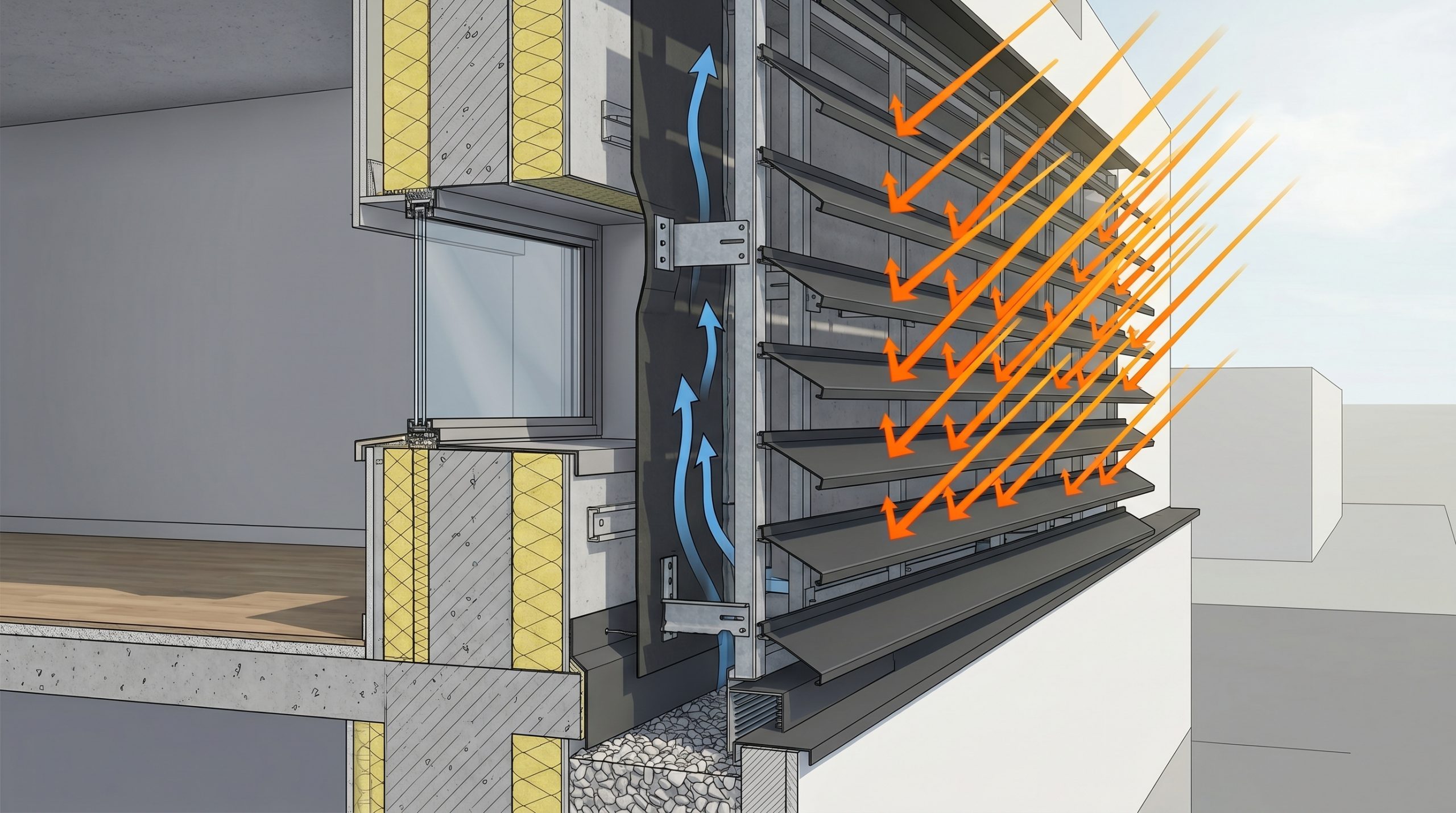

Another critical microclimate function is ensuring proper aeration of the facade system. The fastening structure must form and stably maintain the calculated gap between the main load-bearing wall of the building and the sun-protection louvers themselves. This gap works on the thermosiphon principle and ensures sufficient, continuous circulation of air flows along the facade. Optimal ventilation, guaranteed by a reliable fastening system, plays a crucial role in the life cycle of wall materials: it effectively prevents surface dampness, instantly dries condensation, and acts as the main barrier preventing the appearance and spread of dangerous fungus and mold. Thus, the building’s energy efficiency is comprehensively enhanced: the system allows for a significant reduction in electricity consumption for summer air conditioning and a decrease in winter heating losses, creating a buffer zone that also provides reliable protection of the walls from direct atmospheric precipitation.

Detailed Analysis of Visible Mounting Methods

Visible mounting is the traditional, most common method in the mass construction segment and historically the first way to assemble spatial metal structures. Its fundamental philosophy lies in providing maximum mechanical strength through the through-connection of parts using standardized fasteners. This approach is understandable to any installation crew, requires a minimal set of common tools, and allows for quick problem-solving on the construction site.

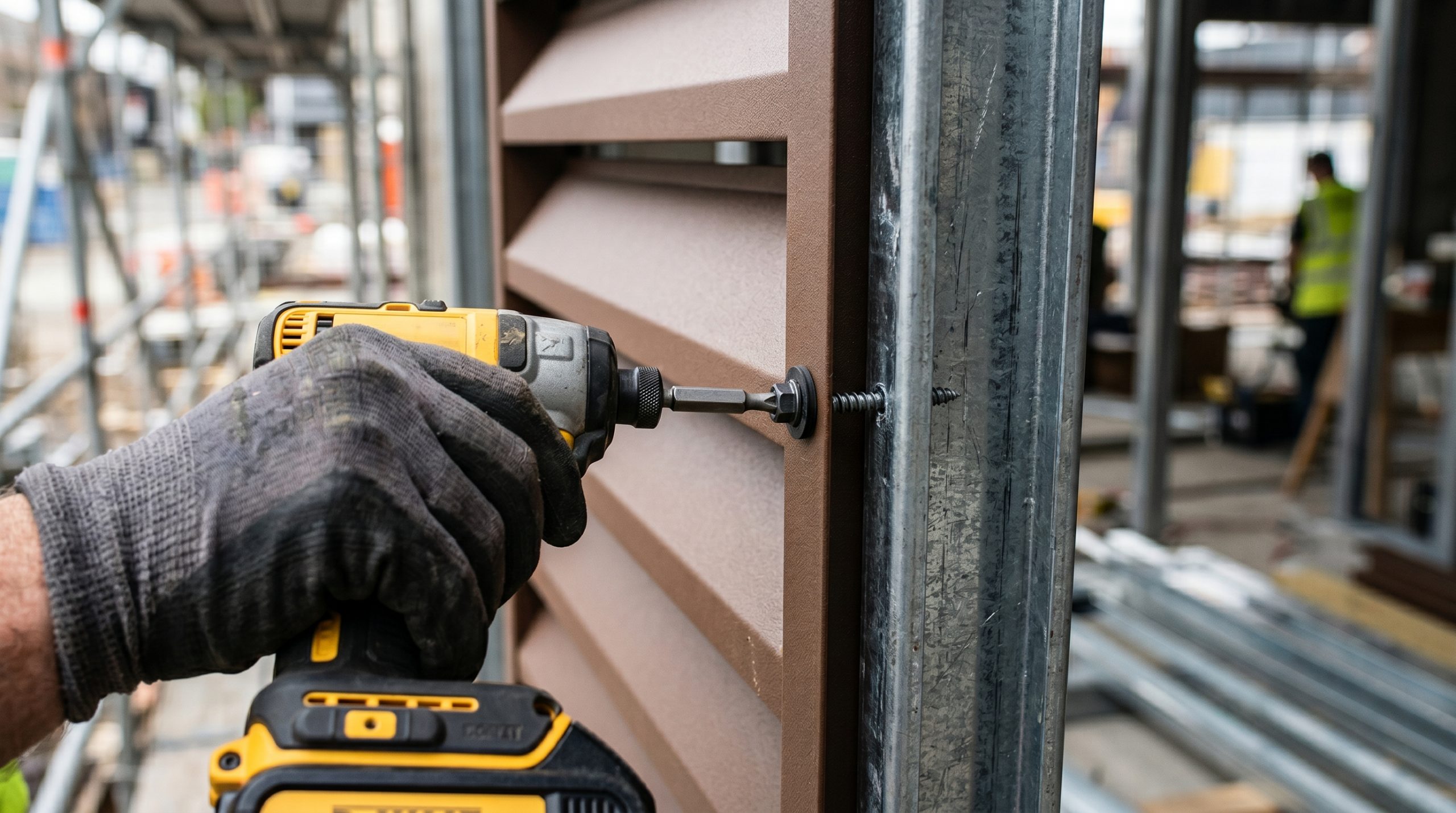

Method 1: Direct Rigid Fixation with Metal Self-Tapping Screws

This method underlies the creation of most budget and mid-priced enclosing structures. The installation process begins with the installation of lateral U-shaped guide rails on the support posts. After that, each louver is sequentially placed into these guides and fixed.

According to common technological standards and instructions for installing louver fences, the fastening of the side rail and the louvers themselves is done using self-tapping screws, which are screwed into each louver and into the outer corner of the guide profile. To ensure the necessary rigidity of the “metal-to-metal” connection, specialized 4.8 x 19 mm screws or self-tapping screws with a press washer are most often used, which have their own drill bit at the end, eliminating the need for pre-drilling holes.

A specific feature of this method is the need to reinforce the structure on long spans to prevent the louvers from sagging under their own weight and vibrating from the wind. For this, a central reinforcement strip is used, to which each louver is also rigidly screwed. The recommended engineering quantity of such reinforcement strips is 1 piece for each fence section up to 2 meters long, and increases to 2 pieces for a massive section whose length exceeds 2.5 meters. After installing the last upper louver, the final top U-strip is mandatory mounted, which is also attached to the side U-strips using the same 4.8 x 19 mm screws or self-tapping screws with a press washer.

Technological advantages of the method: The main advantage is simplicity, accessibility, and versatility. The method provides absolute, monolithic rigidity to the structure. A section bolted together with dozens of self-tapping screws (considering the side mounts and fixation to the reinforcement strips) turns into an extremely strong truss that perfectly withstands frontal physical loads. In addition, this method is the most tolerant of construction errors. Installation is preceded by a competent measurement of the perimeter, during which terrain features, elevation changes, and slopes are taken into account. If the support posts are installed with a slight vertical error or the distance between them varies by a few millimeters, the self-tapping screw allows the master to forcefully “pull” the metal, compensating for these shortcomings. This method also provides the best maintainability: in the event of mechanical damage to one louver (for example, due to an impact), it is sufficient simply to unscrew the corresponding self-tapping screws and replace the element without dismantling the entire span.

Critical disadvantages of the method: The most significant minus is the visual component. The large number of metal screw heads left in plain sight (often on both the inside and outside) creates considerable visual noise. Such fences can look utilitarian and have a less modern appearance, which is why they absolutely do not fit into refined modernist architectural projects where cleanliness and minimalism are valued. From an engineering point of view, the main problem is the violation of anti-corrosion protection. Drilling a through hole destroys the zinc layer and the polymer coating (polyester or pural) on the metal. Even the use of high-quality self-tapping screws with EPDM seals does not guarantee eternal tightness. Over time, under the influence of moisture, salts, and temperature fluctuations, the process of oxidation and rusting inevitably begins around the holes. Furthermore, as detailed earlier, such rigid fixation completely eliminates the possibility of compensating for the thermal expansion of the metal. The louver cannot elongate during the summer heat, leading to its irreversible deformation (“waviness”) and the loosening of the threaded connection.

Method 2: Fixation Using Blind Rivets

An alternative approach within the visible mounting paradigm is the rejection of threaded connections in favor of riveting. This method is widely used both for fastening louvers to the side guides and for assembling the inner frame of the fence. In particular, the reinforcement strip, the upper U-strip, and the louvers themselves can be attached using 4.0 x 10 mm aluminum blind rivets.

The rivet installation process differs from working with a self-tapping screw: it requires mandatory preliminary accurate pre-drilling of a hole through both layers of metal. Then the body of the rivet is inserted into this hole, and with the help of a special tool (riveter), the internal steel mandrel (punch) is pulled out, deforming the aluminum shell. The mandrel breaks off, leaving a reliable, non-separable, and tight connection.

Technological advantages of the method:

Riveting solves the problem of spontaneous unscrewing inherent in self-tapping screws under the influence of aerodynamic vibrations. A rivet provides a durable connection perfectly suited for areas with strong, constant winds.

Aesthetically, a rivet also has an advantage over a massive roofing screw with a press washer. Its head is much flatter, less noticeable, and forms a neater appearance. On the reverse side, a smooth “mushroom” is formed, making the structure safer (there are no sharp screw ends that can injure a person). In addition, rivets are often painted in a RAL catalog color in factory conditions, making them even less conspicuous against the background of the louver.

Critical disadvantages of the method: The main engineering risk of this method lies in materials science. The use of aluminum blind rivets to join galvanized steel sheets in an outdoor environment creates ideal conditions for the formation of a galvanic couple. In the presence of an electrolyte (which is ordinary rainwater with dissolved atmospheric impurities or morning condensation), a microcurrent arises between the dissimilar metals, leading to accelerated galvanic corrosion and destruction of the metal around the hole. The maintainability of such a system approaches zero. To replace a single damaged louver, each rivet must be drilled out, which requires time, accuracy, and carries the risk of damaging the paintwork of adjacent elements with metal shavings or the drill chuck. Also, the initial installation process is significantly more labor-intensive and slower due to the need for a double operation (drilling plus riveting). Just like with self-tapping screws, rivets rigidly fix the part, negating any thermal compensation.

Evolution to Hidden Mounting Systems

The requirements for architectural aesthetics, durability, and operational comfort led to the transition to more complex, technically perfect hidden mounting systems. They are developed with an emphasis on visual purity of lines, where not a single fastening element disrupts the integrity of the facade pattern. Hidden fastening elements make louver fences (especially premium-class models) exceptionally neat and flawlessly aesthetic from both the outside and the inside. Such fences become not just a reliable barrier or protection for the house, but a full-fledged decoration of the plot, giving it a refined, status look. These technologies withstand physical loads and thermal expansions much more effectively.

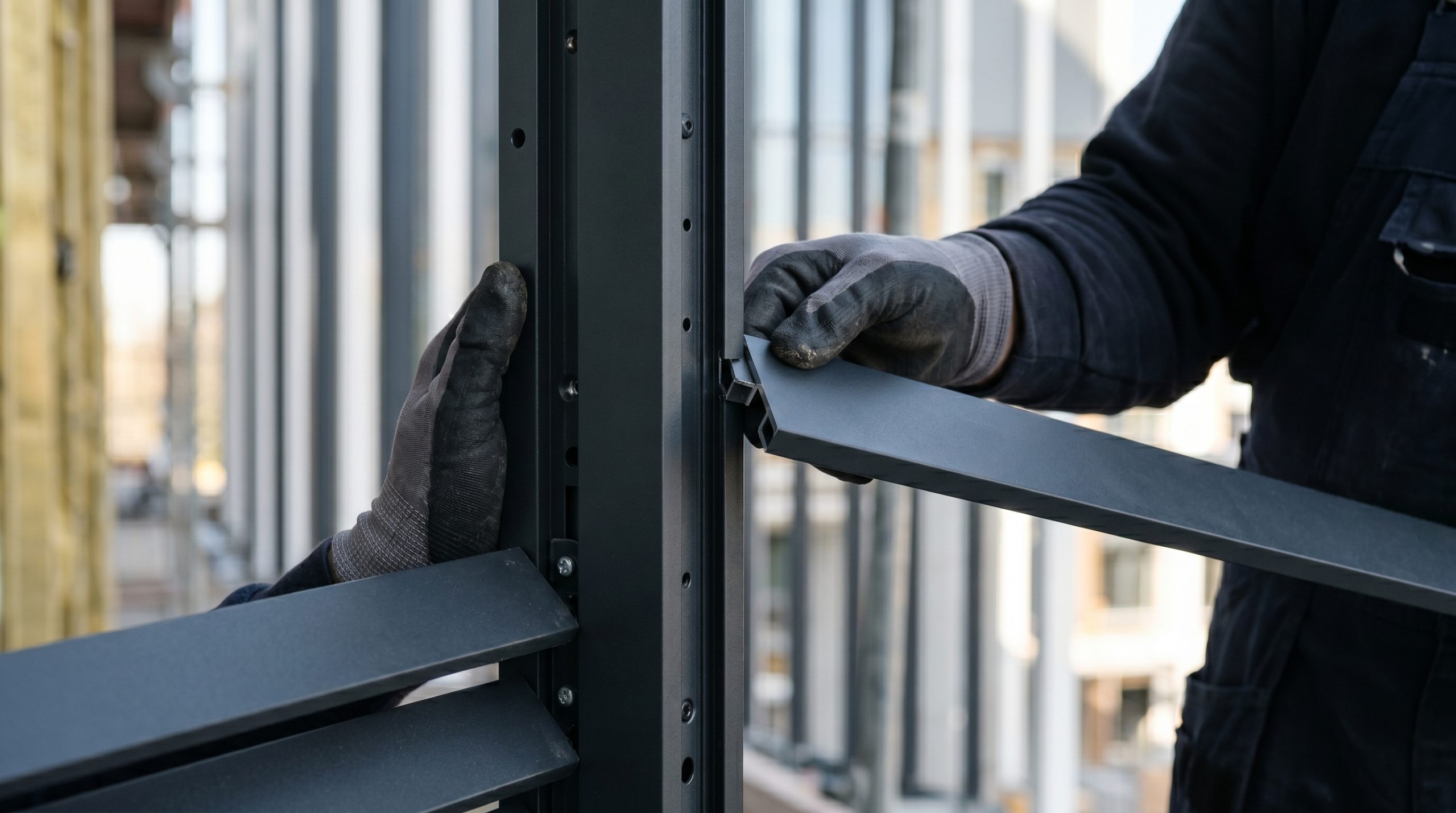

Method 3: Fastening Using a Mounting Comb (Toothed Profile)

The concept of using a mounting comb is an ingeniously simple engineering solution borrowed from other manufacturing sectors and adapted for metal structures. The best analogy for understanding the mechanics of this process is the method of installing wooden orthopedic slats into a modern bed frame. In the furniture industry, instead of rigidly screwing each slat to the frame, a slat holder on a central rail is used. To avoid injuring hands or breaking the slat itself during installation, the simplest method is applied: a small cut (groove) is made in the holder, after which the part falls into place without undue effort, installation is quick, without injuries, and most importantly — nothing cracks or breaks during operation.

This same principle underlies architectural comb systems. The manufacturer produces a lateral U-shaped or L-shaped profile on high-precision laser or coordinate-punching equipment, in the walls of which grooves (teeth) are cut at a strictly defined angle. At the construction site, these combs are rigidly fixed to the support posts strictly vertically. Then the installation crew only has to insert each metal louver into the corresponding groove. To secure against lateral displacement, the louver can be lightly tacked with a drop of polyurethane adhesive sealant, secured by bending a special metal “tongue” inside the profile, or held in place by a decorative cover.

Technological advantages of the method: This system radically reduces the influence of the “human factor” during installation. The exhausting need to manually mark the pitch between louvers with a tape measure disappears, eliminating the risk of misalignments. The ideal geometry, pitch, and tilt angle are already embedded in the design of the comb itself at the factory. An important advantage is the partial solution to the problem of thermal expansion. Since the louver lies freely in the comb’s groove and is not pierced by hardware, it has the ability to make linear micro-movements, expanding and contracting under the influence of temperatures, similar to how flexible expansion joints and guides work in industrial systems. The metal “breathes” without creating a deformation wave and without destroying contact points. The absence of drilling also guarantees the integrity of the zinc layer, significantly extending the life cycle of the fence.

Critical disadvantages of the method: The main problem is the system’s absolute intolerance to geometric errors of the load-bearing frame. Installation is preceded by extremely competent site measurement. If the support posts are installed such that the distance between them is even a few millimeters greater than the length of the prepared louver, it will simply fall out of the comb, as it has no rigid fixation. If the distance is less, the louver will not fit and will have to be trimmed, which in site conditions often leads to paint damage and a risk of corrosion. In addition, the system lacks flexibility in adjustment. If it is necessary to adjust the louver pitch (for example, to change the level of fence transparency) , this is impossible without completely replacing the metal side combs with new ones manufactured with a different tooth pitch.

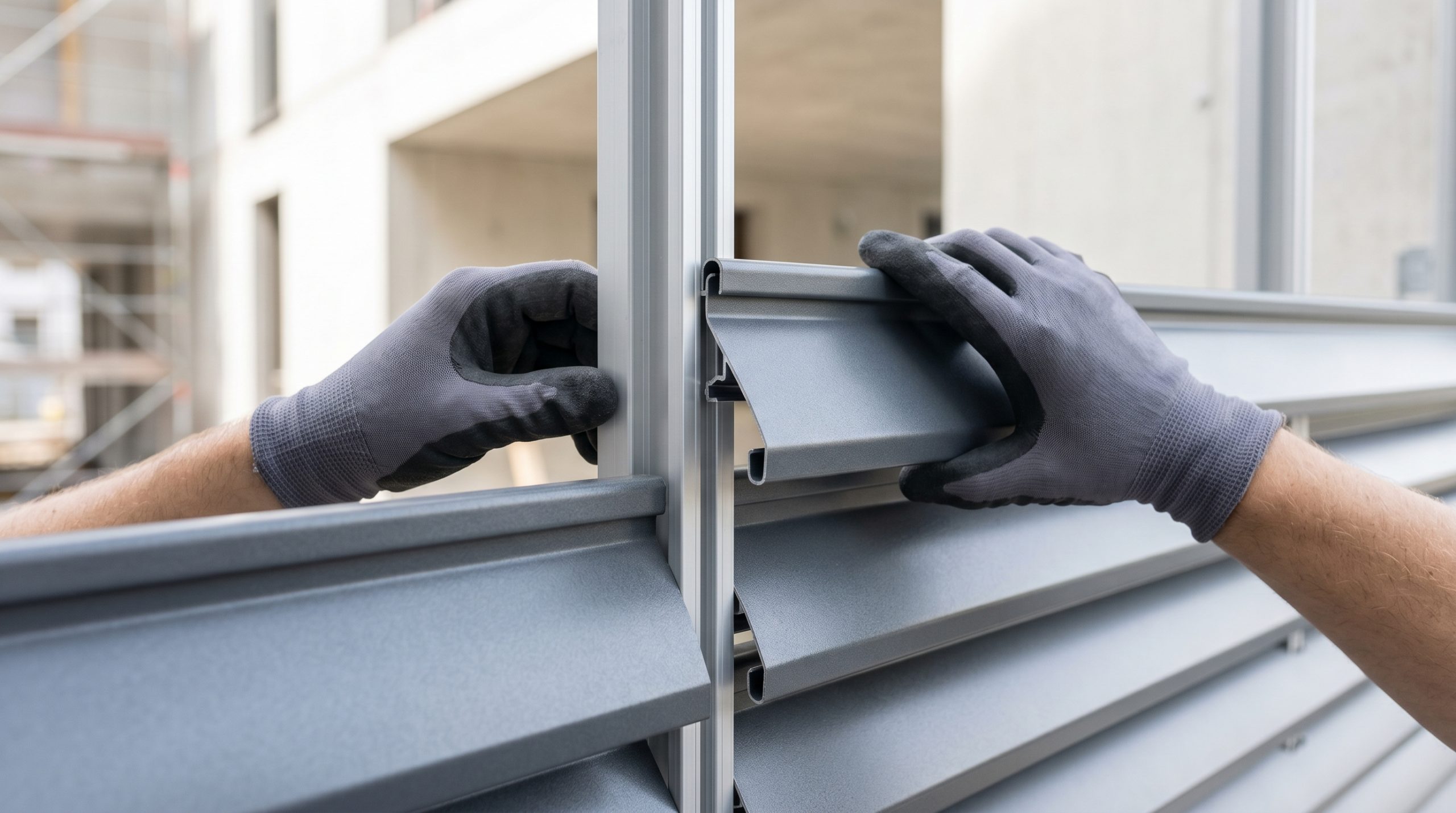

Method 4: Click Systems (Snap-on Spring Mechanisms)

The highest stage in the evolution of hidden mounting is the development of innovative click systems. These technologies were successfully adapted from premium standing seam roofing systems, such as “Click Seam” systems, which come in straight classic types, with a microwave, or a central micro-rib. The snap-lock principle allows the assembly of complex, large-scale structures without using any external fasteners at all, ensuring high speed and phenomenal reliability. Manufacturers position such solutions as “haute couture fences,” comparing their installation process to the easy assembly of Lego (“Do you buy Lego already assembled?”).

The architecture of the click system consists of two basic elements. The first is a support profile (stringer) that has special stamped elastic projections (clips). This stringer is securely fastened to the posts. The second element is the louver itself, the edges of which have undergone a complex roll-forming process to create a specific lock. During installation, the louver is simply placed on the stringer and pressed against it until a characteristic “click” is heard. The lock’s metal springs, expands, and firmly grips the stringer’s projection.

Technological advantages of the method: This method provides unprecedented, reference aesthetics. The structure looks like a solid, monolithic premium-class architectural object that harmoniously complements any, even the most complex design landscape. Not a single screw spoils the visual perception. The corrosion resistance of this system is the maximum possible. The absence of drilling, riveting, or other mechanical damage guarantees the complete preservation of the protective zinc and polymer layers. Regarding thermal compensation, the click system works perfectly. The spring lock securely holds the louver in the vertical and transverse planes (withstanding enormous wind loads) but leaves room for micro-sliding in the longitudinal axis. This allows the system to adapt to thermal expansion and contraction without accumulating stress.

Critical disadvantages of the method: High technological complexity dictates the corresponding price. Manufacturing such systems requires expensive, high-precision equipment, which automatically places them in the highest price segment. In addition, the reliability of the lock critically depends on the thickness and quality of the steel used. Cheap, thin metal (less than 0.45 mm thick) will not have sufficient elasticity for reliable fixation and will begin to resonate and hum under the influence of the wind. Dismantling a damaged section is extremely difficult: it is practically impossible to open the spring lock without deforming the thin metal of the louver, so such connections are considered conditionally non-separable.

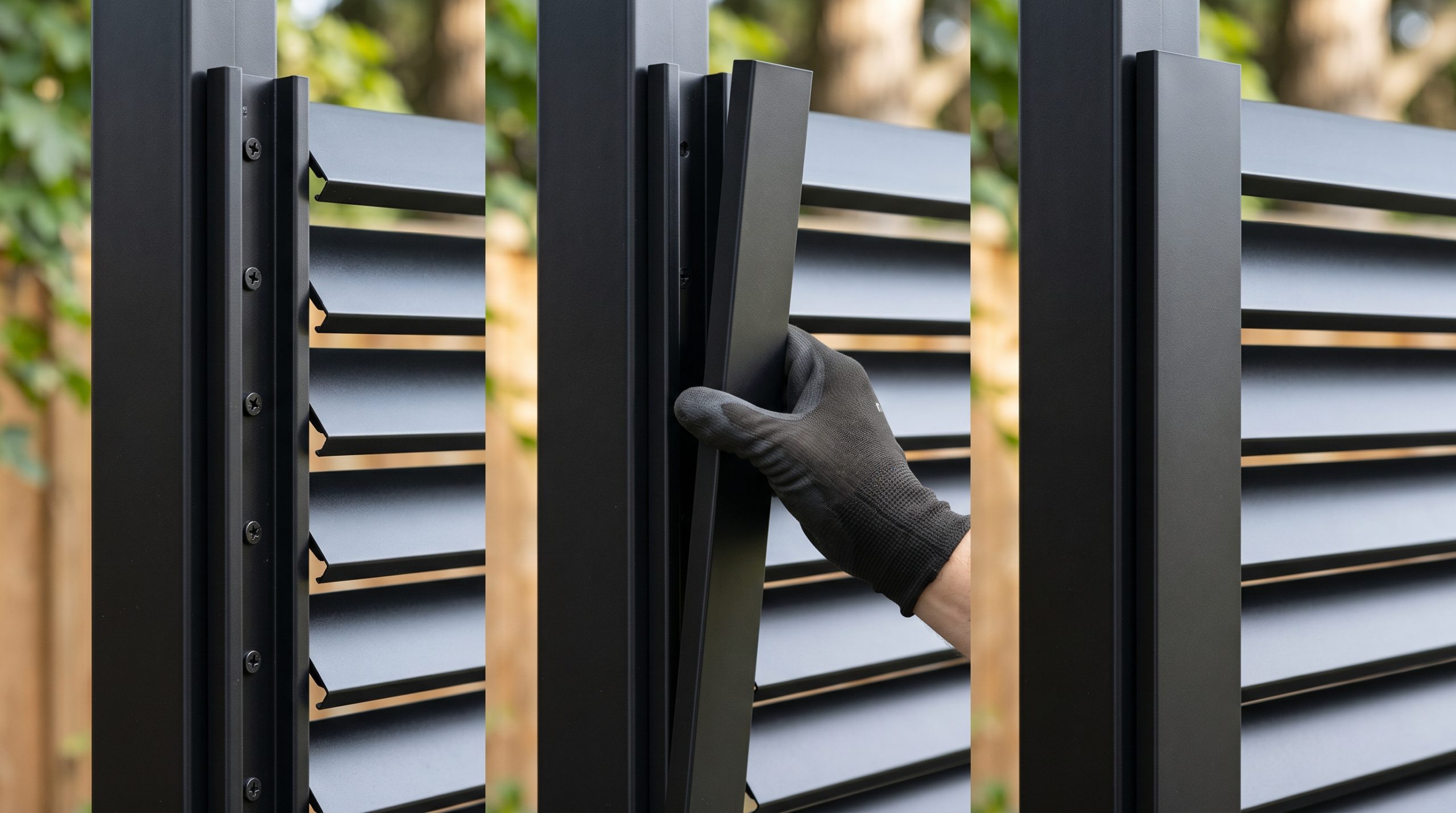

Method 5: Hidden Mounting in Guides with Decorative Covers (Inserts)

This method represents a rational engineering compromise between the traditional strength of visible mounting and the aesthetic demands of premium facades. It hides unsightly fixation elements while ensuring high reliability of the entire system.

The process combines several stages. First, the base guide is mounted. The louvers are rigidly attached to it with self-tapping screws or rivets (repeating the steps of Method 1 or Method 2). However, after completing the rough fixation, special decorative elements are installed over the fastening area. According to technological charts for fence installation, if necessary, decorative covers (post cladding) are installed on the post. Notably, these covers often do not even require fixation with additional fasteners — they are simply pressed tightly to the post from both sides, covering the mounting groove. For a fence section 2.5 meters long, 1 such decorative cover is usually used, and for a 3.0-meter section — 2 pieces.

In more complex facade blinds systems, a similar principle is applied: lateral fixation is carried out, which reliably holds all louvers along the entire length of the product canvas. Such fixation is somewhat more expensive, but it allows blinds to be installed even on tear-off (movable) window sashes, as plastic fixators firmly hold the geometry, preventing the product from sagging in the middle. After fixing the lower plumb and side elements using plastic brackets, the installation area is covered by an exquisite decorative wooden valance, which completely masks the technical component of the structure.

Technological advantages of the method: The main plus is the combination of the absolute reliability of a rigid connection with high aesthetic performance. The customer receives a facade or fence that looks neat and expensive, but at the same time, each louver is “dead” screwed to the frame, making the system highly resistant to extreme wind tear-off loads. The ability to use it on movable facades and sashes makes this system indispensable for dynamic architecture.

Critical disadvantages of the method: The main disadvantage is double the work for installation crews. It is necessary not only to perform the labor-intensive process of drilling and driving hundreds of screws but also to spend time accurately fitting and mounting the decorative covers (valances). This increases the overall cost and duration of the work. Furthermore, since the primary fixation remains rigid (on hardware), the fundamental problem of thermal expansion is not resolved. The decorative cover only hides the problem but does not relieve the internal stress of the metal; therefore, with significant temperature fluctuations ($ \Delta T $), the risk of deformation of long louvers remains high. Also, atmospheric dirt and moisture can accumulate in the gaps between the guide and the decorative insert, requiring specific fence maintenance, recommendations for which are provided to the client upon handover via a checklist.

Structured Analysis and Comparison of Technological Indicators

To ensure an objective choice of the optimal fastening system in the process of engineering facade design or landscaping, all the described methods can be consolidated and compared according to key operation and life-cycle criteria.

Comprehensive Process of Site Preparation and Installation

Regardless of the chosen fastening method, the final reliability of the structure depends on compliance with strict technological protocols on the construction site. The installation of any modern louver fence is compulsorily preceded by a stage of competent engineering measurement and consultation with the customer. During this procedure, specialists determine key parameters that will affect the choice of fixation system: the exact shape and length of the perimeter, terrain features (such as elevation changes or complex slopes, which are hard to overcome with click systems), as well as the type and density of the soil. The presence of underground utilities in the future installation zone also dictates limits on the concreting depth of the support posts.

The process of integrating louvers into the frame is high-precision and responsible. Even when using automated toothed combs or click systems, each louver is installed by craftsmen manually. This exact manual fitting is critically necessary to avoid the slightest gaps or misalignments, which in the future can provoke vibration of the entire canvas during strong squally winds. If the engineer realizes that the standard rigidity of the chosen fastening system is insufficient (for example, in wind corridors or coastal zones), if necessary, prompt adjustment of the louver pitch or additional reinforcement of the load-bearing frame with central rib strips is carried out.

The final stage of creating a facade or fence is handing over the object for operation. If the installation was carried out by a qualified crew of specialists, then after a full final check of all fastening nodes, the object is handed over to the customer. The results acceptance process is carried out according to a strict checklist, during which the reliability of fixation, the absence of scratches, and acoustic comfort (absence of vibrations) are verified. In addition, the client receives comprehensive recommendations for fence maintenance, which differ depending on whether the system has open screw heads or decorative covers requiring delicate cleaning.

Thanks to careful adherence to these engineering protocols, facade systems and louver fences are capable of performing their functions for decades, providing optimal ventilation that prevents damp wall surfaces and hinders the appearance of dangerous fungus and mold , while also forming an unsurpassed aesthetic appearance of the object that meets the highest standards of modern architecture.
