Types of fence posts

• What does the choice of fence posts depend on?
• How to choose supports: a step-by-step algorithm
• Comparison of metal, concrete, brick, and wooden supports
• Plastic and asbestos-cement pipes: historical application and modern approach
• Wooden posts
• Concrete and reinforced concrete posts
• Brick posts
• Metal posts
• Gabion posts
• Protection of metal supports from corrosion
• Common mistakes
• FAQ

Support posts are one of the key elements of the fence frame. They take the load from the fence sections, horizontal rails, gates, and wickets, and also transmit wind and other operational loads to the base.

Therefore, choosing posts based only on material, price, or appearance is not enough. For the same type of fence, the requirements for supports can vary significantly depending on the height of the fence, its solidity, the length of the spans, soil characteristics, and the wind conditions of the specific site.

In this article, we will look at the main types of fence supports, compare metal, concrete, brick, and wooden solutions, and explain what initial data is needed for the correct selection of posts.

Important: the information provided is for reference purposes. The final dimensions of the profile, reinforcement, foundation, installation depth, and post spacing for critical, tall, or solid fences should be determined by calculation, taking into account the conditions of the specific site.

What does the choice of fence posts depend on?

When choosing supports, it is necessary to evaluate not just one characteristic, but the entire “fence – post – foundation – soil” system.

Main initial data:

1. Fence height. As height increases, the windage area increases, and consequently, the load on the supports.
2. Solidity of sections. A solid metal sheet, a louver system, and a ventilated section create different wind loads.
3. Span width. The distance between supports affects the load on the posts, rails, and fasteners.
4. Mass of sections. Heavy concrete, metal, or combined elements require an appropriate load-bearing system.
5. Gates and wickets. Their supports are often calculated separately due to additional static and dynamic loads.
6. Wind conditions. The construction area, terrain openness, relief, and actual exposure of the fence to the wind are taken into account.
7. Soil type. Bearing capacity, susceptibility to subsidence, and frost heaving are important.
8. Groundwater and drainage. Moisture can affect both the foundation and the underground part of the support.
9. Operating conditions. Industrial environments, coastal areas, reagents, or constant humidity increase the requirements for material protection.

That is why a universal recommendation like “install a post every certain number of meters to a certain depth” without other initial data can be incorrect.

How to choose fence supports: a step-by-step algorithm

Metal, concrete, brick, or wooden posts: what to choose?

There is no single type of support that is equally suitable for all fences. The choice depends on loads, section type, soil, foundation, and operating conditions.

Plastic and asbestos-cement pipes: historical application and modern approach

Plastic supports

Plastic pipes and profiles can be used as elements of some lightweight fencing systems if provided by the manufacturer’s design.

Their load-bearing capacity depends on the material, cross-section, wall thickness, temperature regime, and installation method. Therefore, a plastic pipe should not be automatically considered a replacement for a steel or reinforced concrete load-bearing post.

Asbestos-cement pipes

Asbestos-cement pipes have historically been used in construction, particularly as auxiliary elements of various structures. Such supports can still be found in old fences today.

However, historical application does not mean this material should be recommended for a new fence.

Materials containing asbestos require a separate safety assessment. Special attention should be paid to work during which the material can be damaged, generating dust: drilling, cutting, dismantling, or demolition.

For new construction, it is advisable to consider modern alternative materials.

If there are already old asbestos-cement structures on the site, before drilling, cutting, or dismantling them, you should check current requirements for the safe handling of such materials and, if necessary, involve specialists.

Wooden posts

Wooden supports are traditionally used for wooden, decorative, and relatively light fences.

Their practical advantage is the simplicity of mechanical fastening of rails and sections. At the same time, operational characteristics strongly depend on the wood species, its moisture content, processing quality, and structural protection against water.

For wooden supports, it is especially important to:

1. prevent long-term accumulation of water at the base;
2. use material suitable for the respective operating conditions;
3. protect the ends and other areas of active moisture absorption;
4. provide for the possibility of inspecting the structure;
5. periodically check the wood for cracks, rot, and biological damage;
6. restore the protective coating in accordance with the manufacturer’s recommendations.

The contact of wood with the soil is one of the most demanding zones. The installation method and protection of the lower part of the post should be selected according to the material, structure, and site conditions, rather than a universal scheme.

Concrete and reinforced concrete posts

Concrete and reinforced concrete supports are used where the fence design involves massive elements or high system rigidity is required.

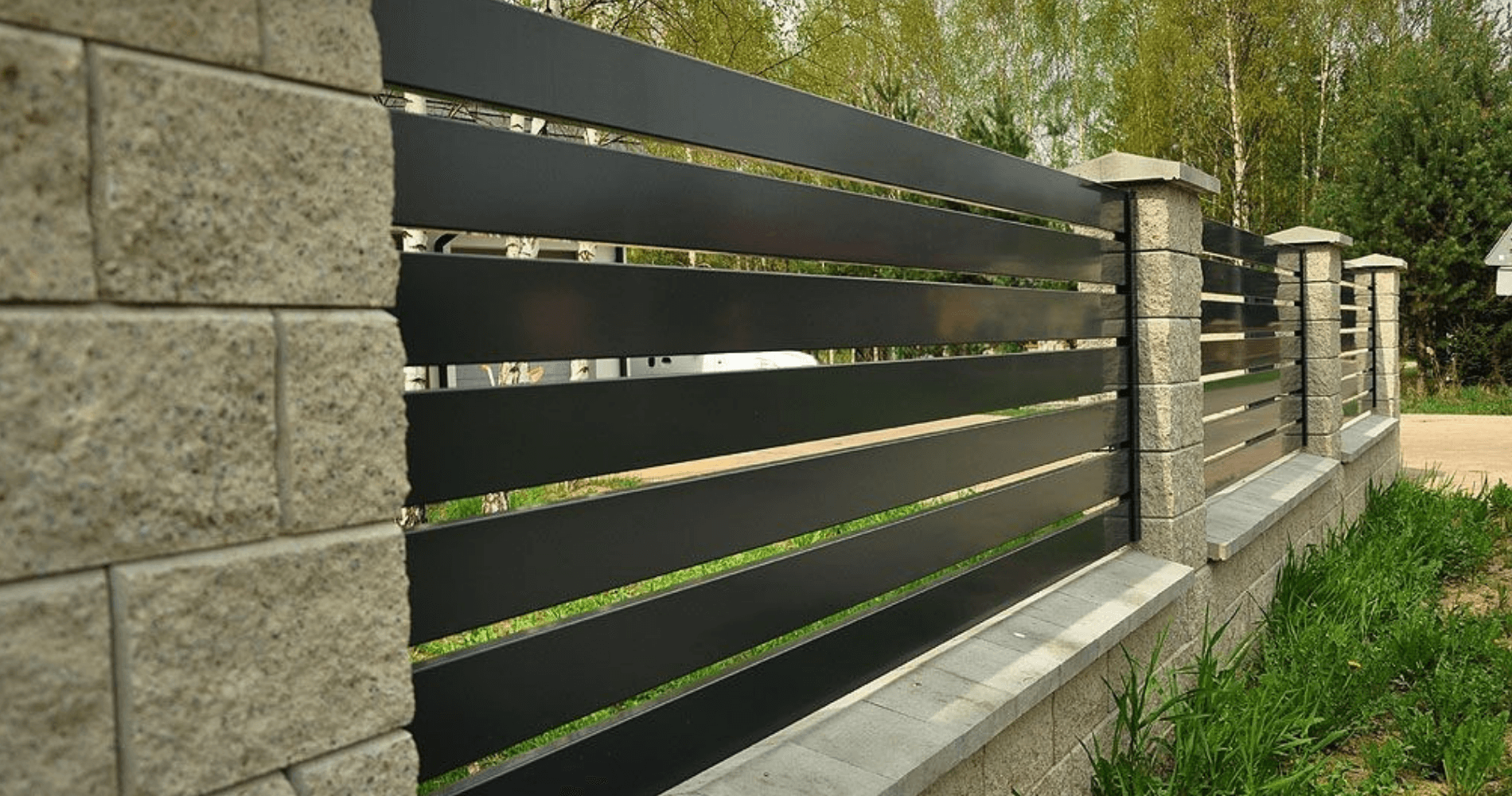

Brick posts

Brick supports are most often not just separate masonry, but part of a complex structure that can include a foundation, metal or reinforced concrete core, reinforcement, and embedded parts for fastening sections.

This solution is often used in combined fences with metal, wooden, or other sections.

When designing, it is necessary to consider:

• masonry mass;
• bearing capacity and deformation of the base;
• foundation design;
• the need for internal reinforcement or a load-bearing core;
• location of embedded parts;
• protection of the upper part of the masonry from precipitation;
• frost resistance and water absorption of materials;
• quality of mortar and joint execution.

The claim of a fixed service life for a brick post without considering these factors is incorrect: durability is determined by the entire structure and its operating conditions.

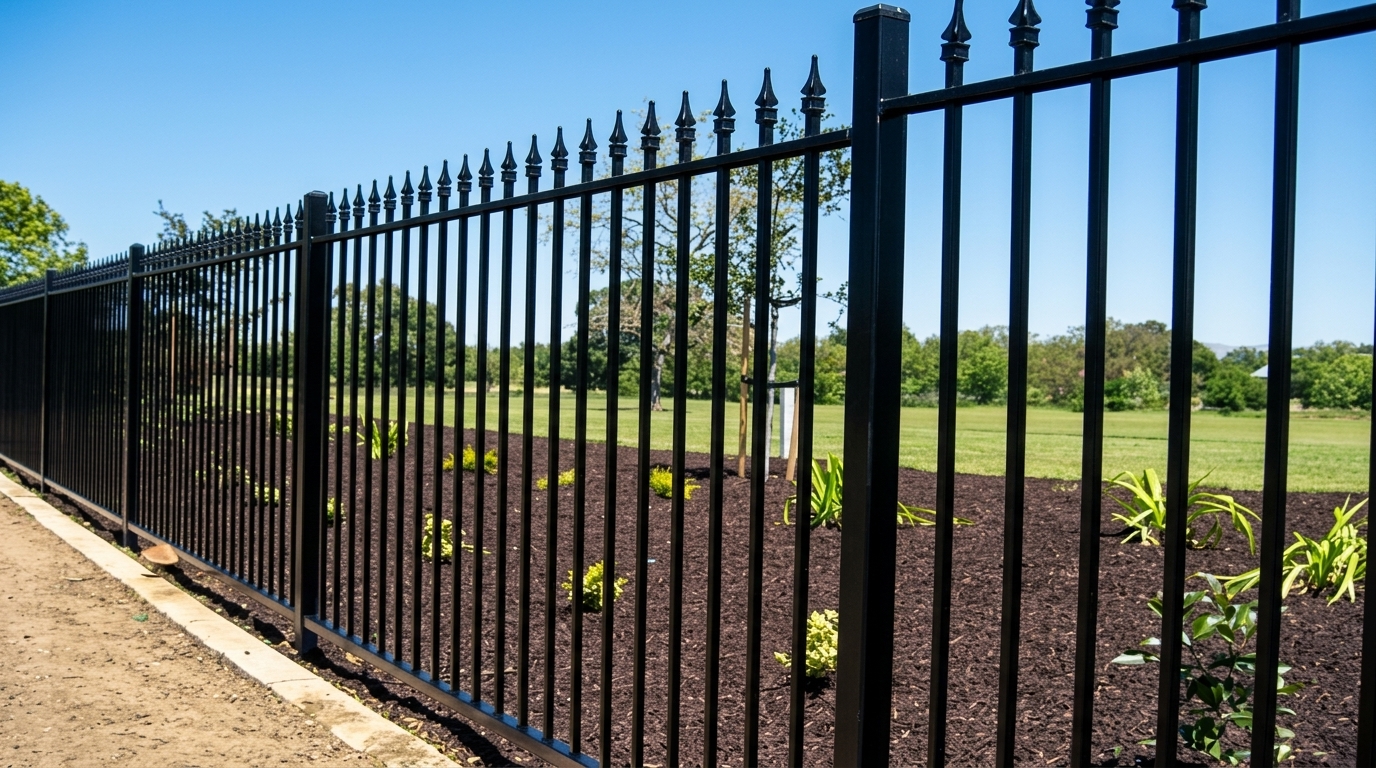

Metal posts

Metal supports are widely used in modern fences due to their relatively low weight, ease of installation, and the ability to select a cross-section for a specific load.

Profile and round steel pipes, specialized profiles, and other structural solutions can be used to manufacture supports.

What to check when choosing a metal support?

1. shape and size of the cross-section;
2. wall thickness;
3. steel characteristics;
4. height of the above-ground part;
5. size of the buried or anchored part;
6. spacing between posts;
7. section type and its wind permeability;
8. method of fastening rails and sections;
9. anti-corrosion protection;
10. protection of the inner cavity of the profile from water.

Standard profile pipe

A profile or round steel pipe can be used as a support if its load-bearing capacity meets the parameters of the specific fence.

Untreated or improperly protected steel corrodes in a humid environment. Special attention is required for welds, coating damage, the area near the ground level, and places of water accumulation.

Specialized fence posts

Ready-made system supports can have mounting points provided by the manufacturer, plugs, and a factory protective-decorative coating.

This simplifies the integration of the post with a specific fence system, but does not eliminate the need to check its cross-section, installation scheme, and foundation in accordance with the loads of the specific project.

Gabion posts

A gabion support is a spatial metal mesh structure filled with stone or other material specified by the project.

Its feasibility depends on the architecture of the fence and the design of the base.

A gabion should not be automatically considered easy to install or not requiring structural verification. A stone-filled structure has significant mass.

It is necessary to evaluate:

• dimensions and stability of the gabion;
• soil bearing capacity;
• base preparation;
• quality and corrosion resistance of the mesh;
• type and fraction of the filling;
• fastening of fence sections;
• drainage;
• possible deformations of the base.

Gabion elements can be combined with metal or other sections if such a design is provided by the project.

Checklist for protecting metal posts from corrosion

The durability of the metal frame depends not only on the thickness of the steel. Corrosion often starts locally — in places with damaged coating, welding, contact with moisture, or water accumulation.

Before installation and during the acceptance of work, check:

1. whether the entire external surface has the prescribed protective coating;
2. whether the cutting and drilling sites are treated;
3. whether the welds are protected;
4. whether there are any scratches or areas of bare metal;
5. whether the upper end of the post is closed;
6. whether water can accumulate inside the profile;
7. whether the area near the ground surface is protected;
8. whether the fastening and coating materials are compatible;
9. whether the structure creates permanent water retention zones;
10. whether the coating has been restored after installation operations;
11. whether periodic inspection of damaged areas is provided.

For environments with high corrosion activity, the protection system must be selected separately.

How load is transmitted through the fence

That is why increasing only the thickness of the post does not always solve the problem. If the base is insufficient, the fasteners are weak, or the span is chosen incorrectly, the structure must be adjusted comprehensively.

Which parameters should not be set “by eye”

Common mistakes when choosing and installing posts

1. Choosing a post based solely on price

A cheaper profile with an insufficient cross-section may prove unsuitable for a tall or solid fence.

2. Using the same spacing for any fence

The optimal span depends on sections, rails, height, and loads. Values from another site cannot be automatically transferred to a new one.

3. Universal installation depth

There is no single value that fits all soils, heights, and types of fences.

4. Ignoring wind load

For tall solid fences, wind can be one of the determining factors.

5. Identical supports for the fence and gates

Gates create additional loads. Their supports and foundation often require a separate calculation.

6. Lack of soil information

Even a strong post does not guarantee the stability of the fence if the base deforms or has insufficient bearing capacity.

7. Unprotected cutting and welding points

During installation, the factory metal coating can be damaged. Such areas must be restored in accordance with the applied protection system.

8. Water inside the metal profile

An open upper end or incorrect joint design can facilitate the ingress and accumulation of moisture.

9. Ignoring the terrain

Elevation changes can alter the actual height of individual fence sections and the working conditions of the supports.

10. Evaluating the post separately from the entire structure

The post, rails, sections, fasteners, foundation, and soil must be considered as a single system.

FAQ: Frequently asked questions about fence posts

What are the best posts to use for a metal fence?
For many metal fences, steel profile supports are a practical solution. But the required cross-section, wall thickness, and installation scheme depend on the height, section solidity, span, wind load, and foundation.

What is the correct spacing between posts?
There is no universal spacing. It must be selected together with the post cross-section, rail characteristics, section design, and loads.

How deep should posts be installed?
A universal depth without information about the soil and loads is an incorrect recommendation. To determine the depth, at least the fence parameters, loads, soil characteristics, freezing conditions, and foundation design are required.

Do metal posts need concreting?
The fastening method depends on the fence design, soil, and loads. Concreting is one possible solution, but not a universal rule for every site.

Can the spacing between posts be increased if a thicker profile is used?
Changing the support cross-section can affect the permissible span, but this issue should not be resolved separately from the rails, sections, fasteners, foundation, and wind load.

Which is more important: metal thickness or profile size?
Rigidity and bearing capacity are influenced by a combination of parameters: cross-section geometry, wall thickness, material properties, length of the free part, and the anchoring scheme. Therefore, comparing posts based on just one parameter is incorrect.

Can an asbestos-cement pipe be used as a new post?
For new construction, it is advisable to consider modern alternatives without asbestos. Old asbestos-cement structures require careful handling, especially when drilling, cutting, or dismantling.

Which is better: a concrete, brick, or metal post?
It depends on the project. Metal supports are convenient for many modular metal systems; concrete ones can be used with massive sections; brick ones are often part of a combined structure with a foundation and an internal load-bearing element.

Is it necessary to make a separate calculation for a solid fence?
For a tall or solid fence, checking the wind load is especially important. The larger the area covered by the section, the greater the forces that can be transmitted to the posts and foundation.

Conclusion

The reliability of a fence is determined not by the post material alone, but by a correctly selected system of supports, sections, rails, fasteners, and foundation.

Before choosing a design, it is necessary to consider:

1. height and length of the fence;
2. solidity and mass of the sections;
3. span dimensions;
4. wind conditions;
5. soil characteristics;
6. presence of gates and wickets;
7. moisture conditions;
8. required level of anti-corrosion or other protection.

It is not recommended to assign universal post spacing, installation depth, or foundation dimensions without these initial data.

For metal fences, the specialists of the “Mehbud” company can help select compatible frame elements and a structural solution for a specific type of fence.

Before publishing and using specific numerical parameters for installation, it is recommended to have the material verified by a structural engineer. The final parameters of supports and foundations for a specific site should be determined in accordance with design loads, soil characteristics, and current regulatory requirements.
